This DLY-125W1 manual band saw macine

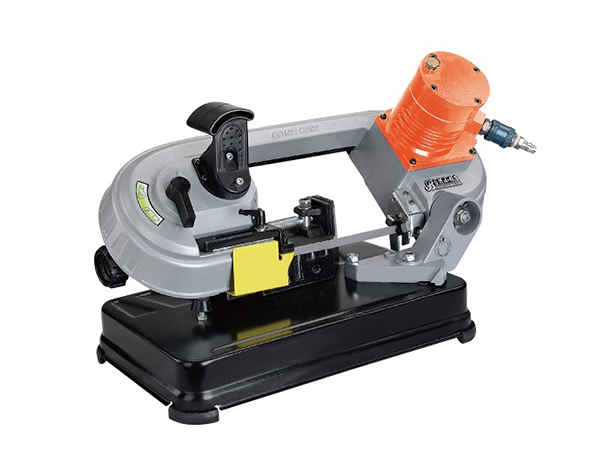

DLY-125W1 Miter Band Saw Machine

This DLY-125W1 manual band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace hacksaws and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.

✔ Pivot Type
✔ Swivel Vise
✔ Manual Downfeed

clsales@chenlongtech.com Get Latest Price

Model		DLY-125W1
Power		680 W
Voltage		110 V/220 V
Frequency		50 Hz/60 Hz
Blade Size		13×0.65×1332 mm
Blade Speed		1~1.9 m/s
Max Cutting Capacity 90º	Round Pipe	Ø125 mm	Ø 4 9/10”
	Solid Round Steel	Ø50 mm	Ø 1 9/10”
	Square Pipe	150×125 mm	5 9/10”x 4 9/10”
Max Cutting Capacity 45º	Round Pipe	Ø55 mm	Ø 1 1/6”
	Solid Round Steel	Ø50 mm	Ø 1 9/10”
	Square Pipe	50×80 mm	1 9/10”x 3 1/7”
N.W/G.W		16/20 kg
Machine Size		600×270×350 mm
Packing Size		680×340×450 mm
20” Container		250 sets
40” Container		500 sets

The DLY-125W1 portable band saw runs on 220-volt power. You can use it almost anywhere. We designed this manual, variable-speed model for small shops and hobbyists.
Features

Straight cut with 125 mm round capacity. And vise adjustment to 45 degree angle cut with 55 mm round capacity
Accepts standard 13 x 0.65 x 1332 mm blades.
Angle changes by swivel vise
Stop rod makes sure that your material will stop at the same length every time to deliver repeatable results.
Weighs just 20 kg, so you can transport it to project sites.
CHENLONG covers this metal band saw with a 1-year parts warranty.
We keep most replacement parts in stock for fast deliveries.
Includes lifetime technical support . Call us up or email to us whenever you run into a problem with the saw or need application advice.

1. Blade Cleaning Brush
2. Length stop
3. Security Switch
4. One Piece of Bi-metal Saw Blade
5. One Set of Tools with Tool Box
6. Instruction Manual

1. Separate Material Roller Table
