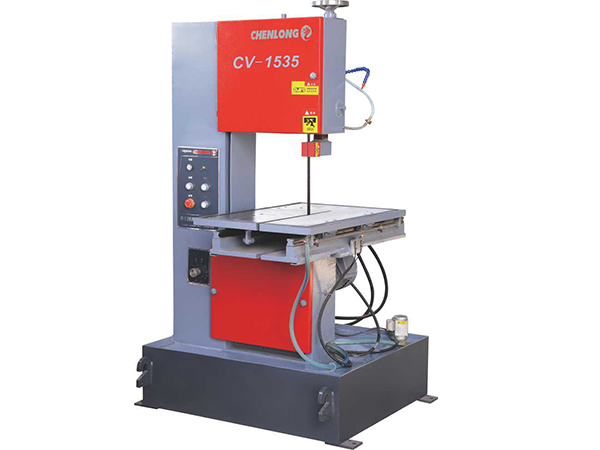

Need a vertical metal band saw but don’t have much room? The CV-1535 vertical band saw combines stability and endurance of a fully-welded steel plate frame.There is a suitable size for almost all applications. The vertical band saw is available with a movable mounting table. CHENLONG CV-1535 vertical band saw offers cutting heights up to 150 mm and table lengths for 500 mm, 800 mm, and 1000 mm long saw cuts as standard features. The CV-1535 model optional equipment with a mobile mounting table is particularly suitable for making short cuts in small, compact blocks.

Features

• 2.2 kW motor operates on 380V and three-phase power.
• 3 blade speeds range 30/45/75 m/min, allow you to adjust to suit the material and project, making quality cuts and prolonging blade life.
• The chenlong vertical band saw accepts standard blade 27x0.9 mm to make even the most intricate cuts.
• Industrial-grade bearings and drive wheels ensure that the machine will last for many years of trouble-free use.
• Laser-assisted material alignment
• Chenlong covers this vertical metal band saw with a 1-year parts warranty.

1. Blade Cleanning Brush
2. LED Work Light
3. Security Switch
4. One Piece of Bi-metal Saw Blade
5. One Set of Tools with Tool Box
6. Operation Manual

1. Hydraulic Top Pack
2. Automatic Chip Conveyor
3. Inverter
4. PLC Control
5. CV Series Can be Designed According to Customer's Required Cutting Size
6. Hydraulic Blade Tension
7. Saw Guide Elevation is Hydraulically Operated 8. Laser Projector
